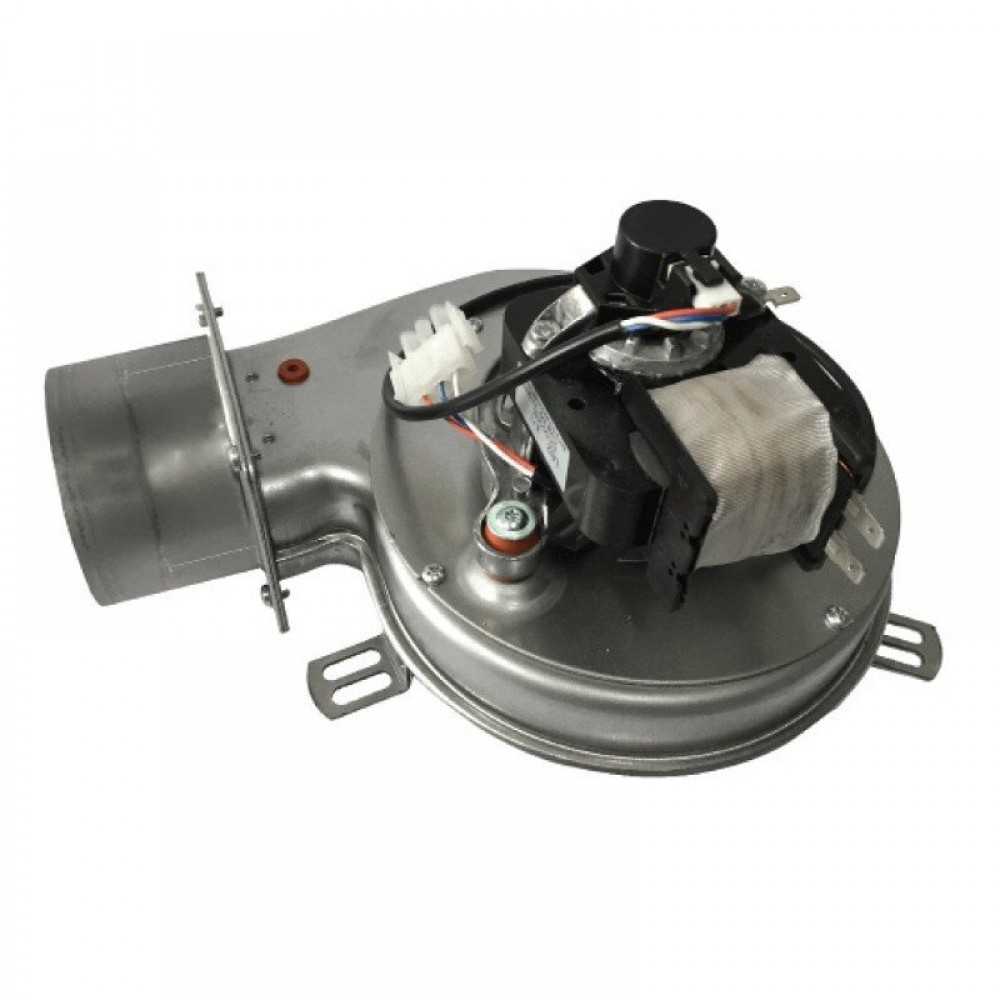

Smoke extractor fan 160m³/h 50W 300Pa

Fully compatible for EcoSpar pellet stoves up to 25kW

  • Stock: I lager
  • SKU: 16.458.006
1 660.44 kr
Inkl. moms
Exkl moms: 1 383.70 kr

     Spara  5%   med banköverföring.

BERÄKNAD LEVERANS
04.Jun.2025
DHL Schenker
Se Fraktpolicy

Fri retur
60 dagarSe detaljer

Vi tar emot betalningar
      Se detaljer

The smoke extractor has been designed to be used for pellet stoves and biomass boilers, which range power is from 5 to 25 KW.

Can be mounted on:

EcoSpar - Auriga-Alba-Gemini-Karina-Tukana-Solara

NORDICA - MCZ - AMG

PALAZZETTI ref.  895713870 mod. Angelica - Caterina - Giada da rivestire - Isabella - Letizia - Margherita new - Penelope - Silvia - Slimmy - Tracy

PIAZZETTA ref. RF02010660 mod. P158T

SIDEROS mod. Gemini più

PALLADIO mod. Scozia 10 Kw

It can be set up in place of LN2 PL20 model and XIANG RRL152

Provided with aluminised steel spiral, which output diameter is of 80 mm, and AISI 430 steel rotor.

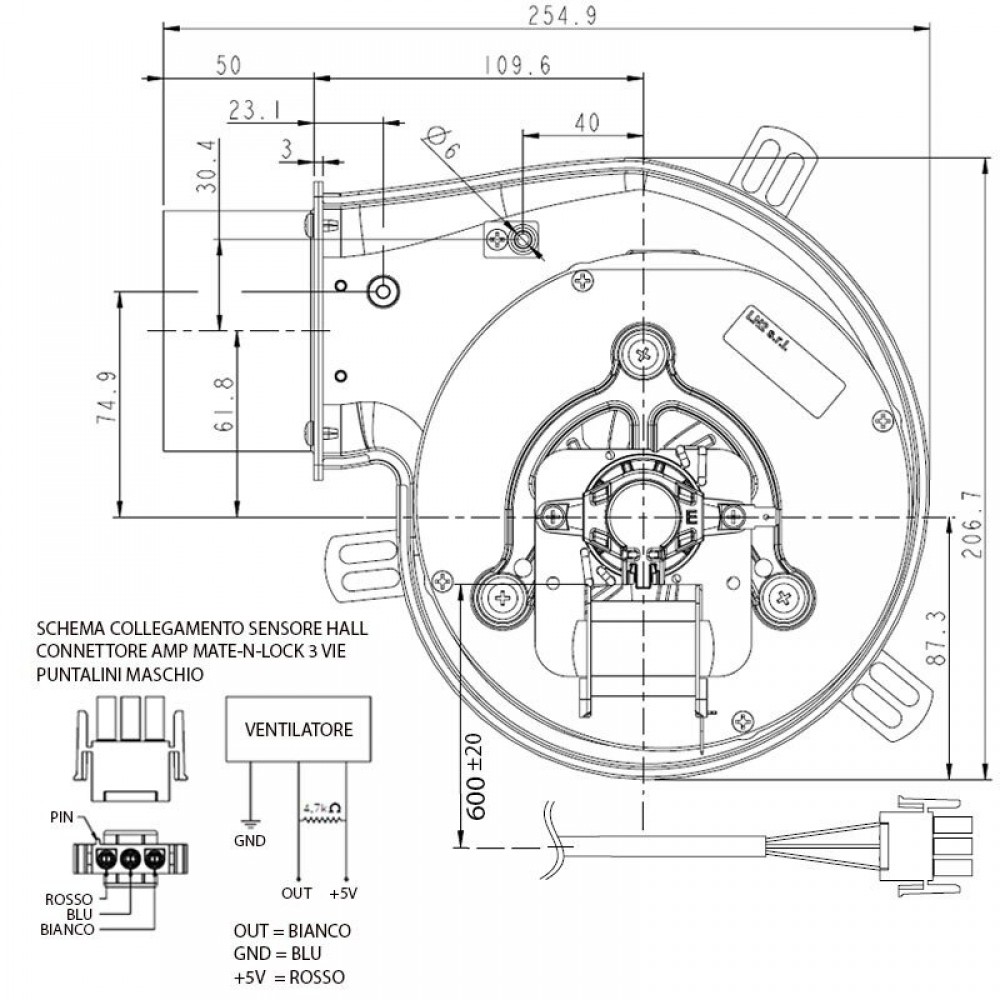

Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder).

In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: H; Protection class: I.

Characteristics
Vikt (kg) 1.0000
Effektförbrukning (W) 50
Typ Smoke extractor fan
Rotationshastighet (varv/min) 2500
Genererat tryck (Pa) up to 300Pa
Flänsanslutning (mm) 80
Maximalt luftflöde (m³/h) 160
